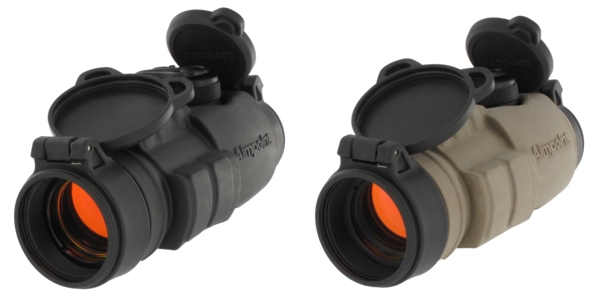

Aimpoint CompM3 - Hellenic Arms Co. S.A.

When police and armed forces personnel are on duty, they need their equipment to handle just about any situation, anytime, anywhere. That’s why Aimpoint^® created the CompM3, a revolutionary sight that offers the highest standard available for sight systems technology.

The Aimpoint^® CompM3 is a very popular sight which is in use with many police and armed forces personnel. When you purchase the CompM3 there is a variety of mounts to choose from. This gives you the opportunity to customize your sight from scratch.

Article number	11403 (CompM3 4MOA)11408 (CompM3 2MOA)
Technology	ACET (Advanced Circuit Efficiency Technology)
Working principle	Reflex collimator sight – red dot sight
OPTICAL DATA
Lightsource	LED (Light Emitting Diode) totally eye-safe
Lightsource wavelength	650 nm red light
Red dot size in MOA (minute of angle)*	4 or 2
Parallax	Absence of parallax -No centering required
Eye relief	Unlimited
Night vision compatibility	Yes
Anti-reflex coating all surfaces & multi-layer coating objective lens	Yes
Magnification	No magnification (1X)
ELECTRONIC DATA
Battery	One 3V Lithium battery, type 2L76 or DL1/3N
Battery life in hours **	50 000 (over 5 years of continuous use)
Battery life in hours at NVD settings *	500 000
Dot intensity adjustment	Manual rotary switch
Daylight (DL) settings	6 DL of which one extra bright
NVD settings	4 NVD
MECHANICAL DATA
Material housing	Extruded high strength aluminum
Surface finish	Hard anodized, matte
Color housing	Black
Adjustment 1 click	13mm at 100m, (1/2” at 100yds)
Mounting methods	1 ring, ø 30mm, (1.18”)
ENVIROMENTAL DATA
Temperature range	-45° – +71° C, (50°- +160° F)
Water resistance – submersible to	45m, (150ft)
Radioactive components used	None
DIMENSIONS
Length	130mm, (5.1”)
Width/height sight only	55 x 55mm, (2.2” x 2.2”)
Maximum ring width	30mm, (1.18”)
Objective diameter	38mm, (1.5”)
Tube diameter	30mm, (1.18”)
Weight sight only	220g, (7.8oz)****
Weight rubber cover	50g, (1.7oz)
